Corner Trim

Automatic inline corner cutter

Automatic unit in line for perfect rounded cut of soft cover books, book blocks and cardboards.

Advantages
  • Simplicity of operation
  • Quick and easy make-ready
  • Reduced floor space
  • Direct link to three knife trimmer
  • Handles single or piled books
Operation

The machine can be directly connected to a three knife trimmer. Conveyor belts accept the books spine leading singly or piled up to 60 mm high. Corner rounding knives can be selected according to the requirements of the finished product.

For inline production without corner rounding the machine can serve just as conveying unit up to 60 mm passage height.



Corner Trim

Sizes trimmed max. (W x H) 305x420 mm
min. (W x H) 70x96 mm
Pile height max. 60 mm (min. 3 mm)
Pile height for throughpass max. 60 mm

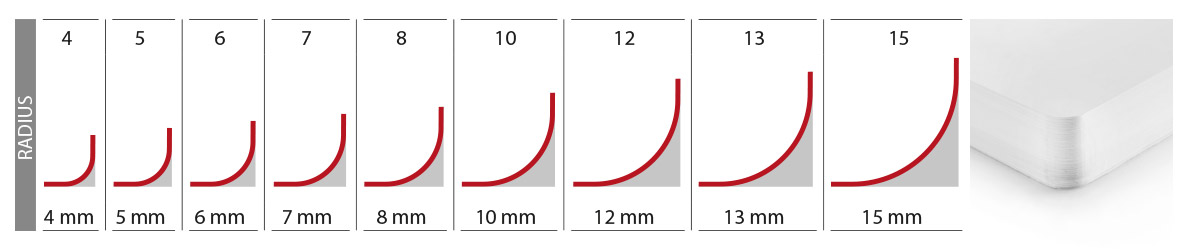

Radius max. 15 mm
Speed max. mechanical (The actual speed of production and the net result depend upon format, kind of product, paper quality, skill of operators and the general production conditions) 4.300 cicli/h
Supply Voltage 400 V / 3 ph / 50 Hz
Consumption Power 4,5 kW
Compressed Air requirement circa 40 l/min a 6 bar
Weight 900 kg

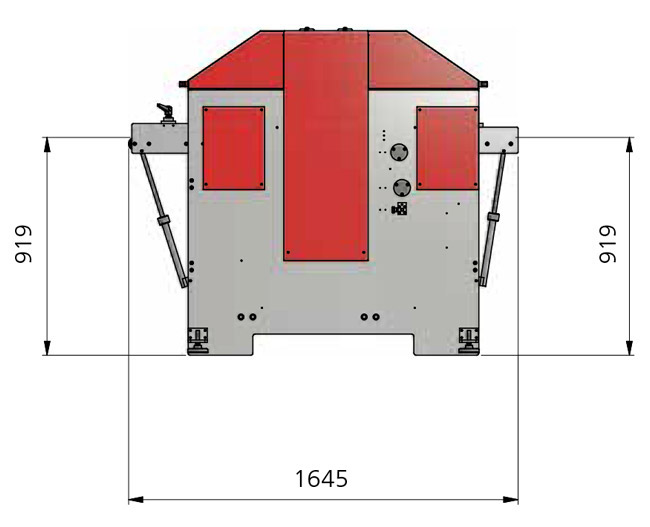

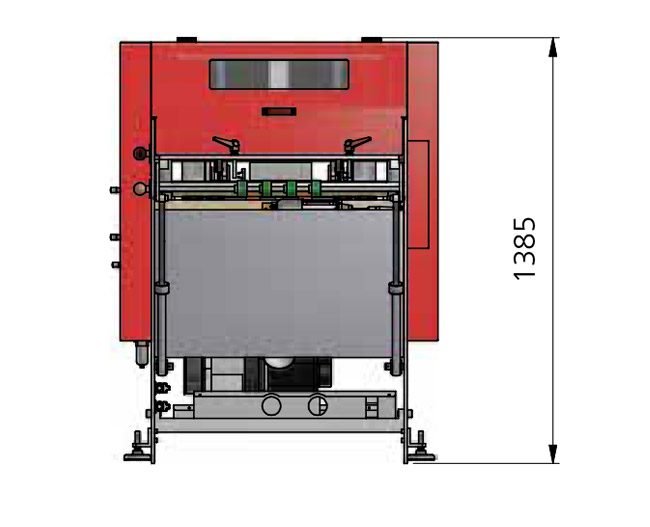

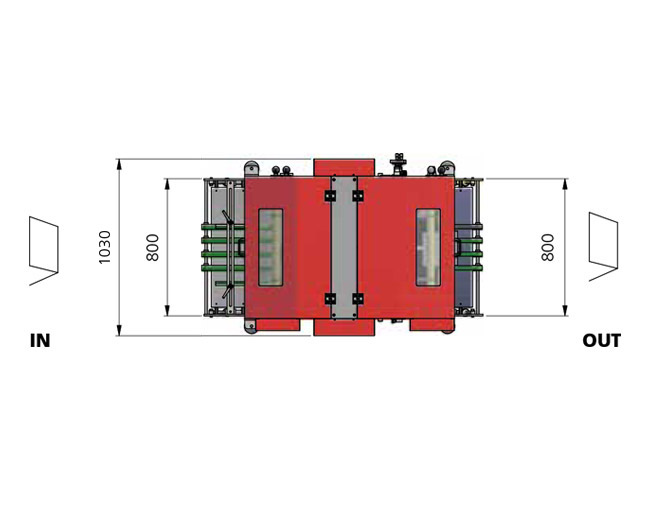

Dimensions (L x W x H) 1.645x1.030x1.385 mm


specifications subject to change without notice
