Corner Master

High speed case corner rounder

Advantages
  • Simplicity of operation
  • Quick and easy makeready
  • Easily moveable
  • Reduced floor space
  • No preparatory treatment of the covering material required
Operation

Cases, freshly made on any casemaker, are fed manually by hopper feeder or in-line automatically onto the infeed conveyor of the CORNER MASTER unit and brought into position in its round cornering station. Four diagonally moving rounding tools create neatly shaped round corners on the cases. With carton qualities up to approx. max 1,000 g/m² rectangular (not corner rounded) case boards are recommended.



Corner Master

Format open case size standard maximum (W x H) 720x420 mm (others upon request)
minimum (W x H) 143x94 mm
Linear speed of infeed Conveyor 60 m/minute
Speed max. mechanical (The actual speed of production and the net result depend upon format, kind of product, paper quality, skill of operators and the general production conditions) max 3,600 cycles/h

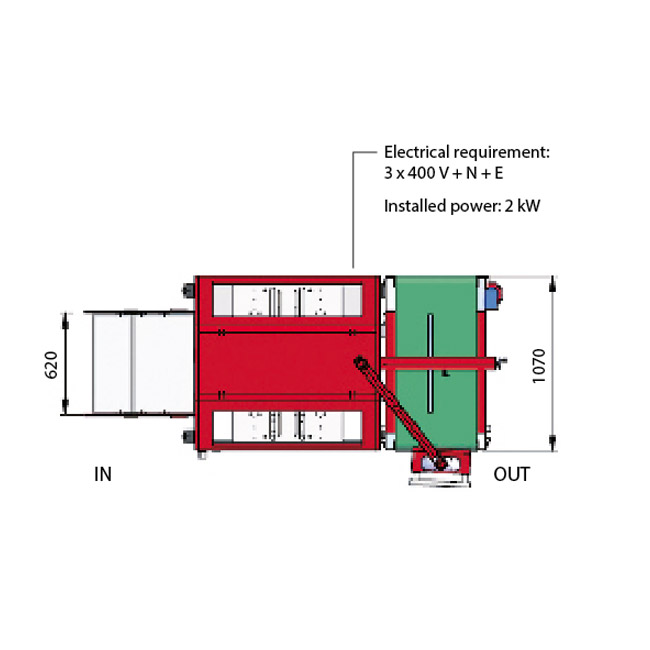

Supply Voltage 400 V / 3 ph / 50 Hz
Installed Power 2 kW
Compressed Air requirement circa 900 l/min a 6 bar
Weight 800 kg

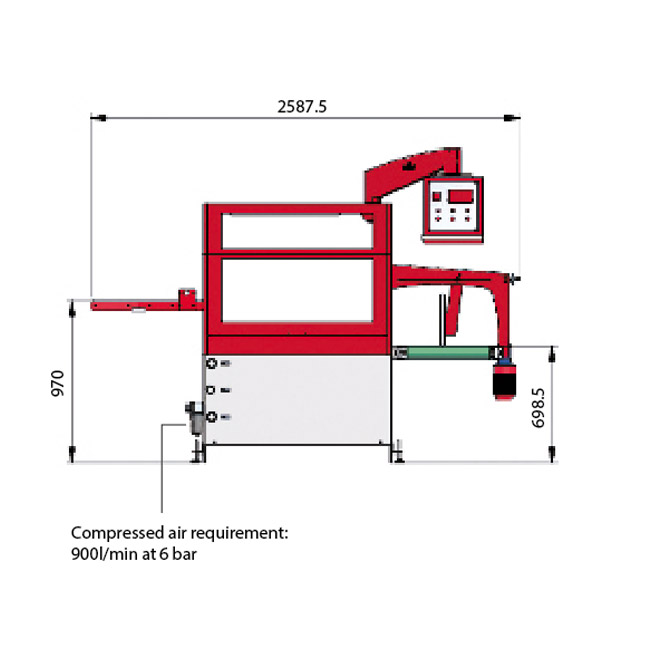

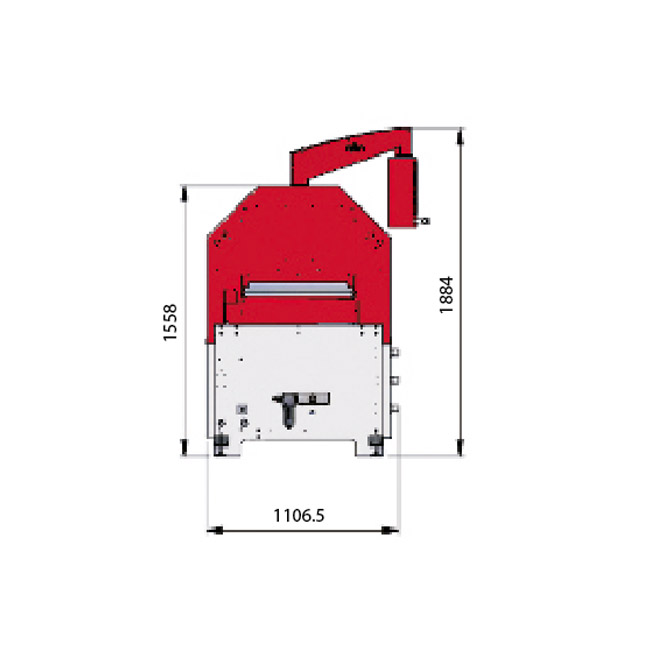

Dimensions (L x W x H) 2.590 x 1.190 x 1.890 mm (altezza ripari chiusi)

specifications subject to change without notice

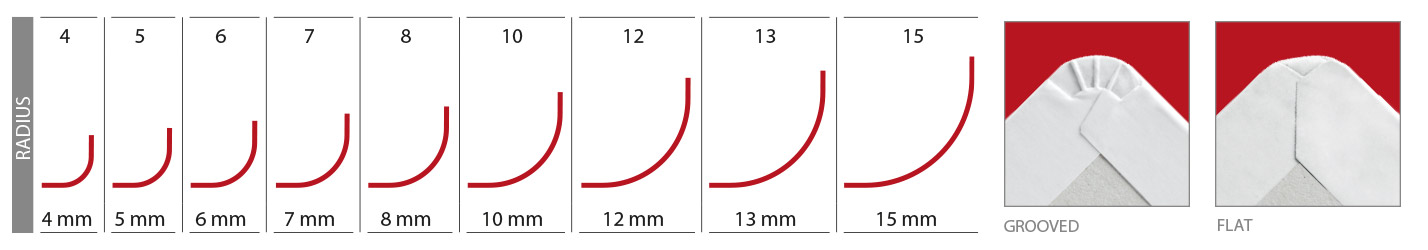

dati_tecnici_cornermaster
