2 Head Corner Rounding

Semi-automatic cover corner rounding unit.

Sturdily built, easy adjusting. The machine will meet with the needs of the small and medium production.

Advantages
  • Simplicity of Operation
  • Quick and Easy Makeready
  • Easily Moveable
  • Reduced Floor Space
Operation

Covers are insert manually into the corner rounding station. In two passages the machinery allows the perfect rounding of the sides of the 4 corners. The unit is equipped with the heating system which soften the glue before the corners will be rounded. Corner pressure time can be adjusted by simply operating on the display.



2 Head Corner Rounding

Open Cover Size standard maximum (width x height) 600 x 570 mm
minimum (width x height) 143 x 92 mm
Supply voltage 230 V / 1 ph / 50 Hz
Installed Power 0,5 kW
Compressed Air Requirement 0.5 ltr/cycle at 6 bar
Weight 200 kg

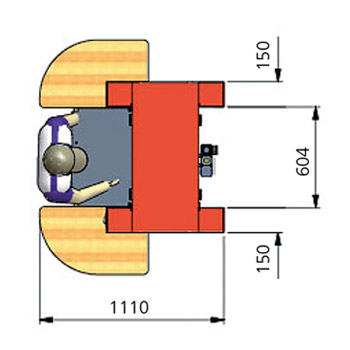

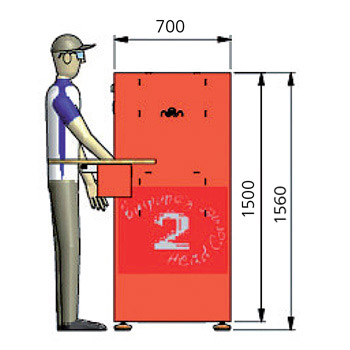

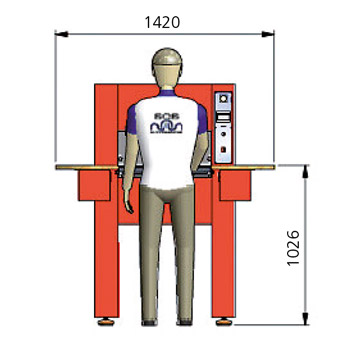

Dimensions (L x W x H) 1.420 x 1.110 x 1.560 mm

Technical data subject to change without notice

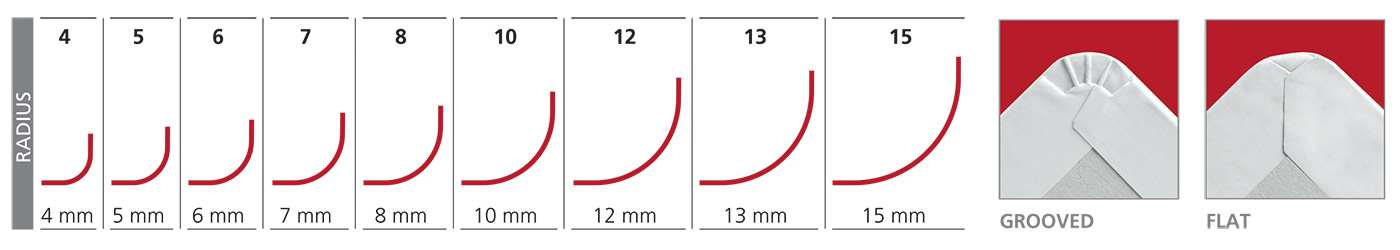

dati_tecnici
